Speed up Docker image build process of a Rails app

tl;dr : We reduced the Docker image building time from 10 minutes to 5 minutes by reusing bundler cache and by precompiling assets.

We deploy one of our Rails applications on a dedicated Kubernetes cluster. Kubernetes is a good fit for us since as per the load and resource consumption, Kubernetes horizontally scales the containerized application automatically. The prerequisite to deploy any kind of application on Kubernetes is that the application needs to be containerized. We use Docker to containerize our application.

We have been successfully containerizing and deploying our Rails application on Kubernetes for about a year now. Although containerization was working fine, we were not happy with the overall time spent to containerize the application whenever we changed the source code and deployed the app.

We use Jenkins for building on-demand Docker images of our application with the help of CloudBees Docker Build and Publish plugin.

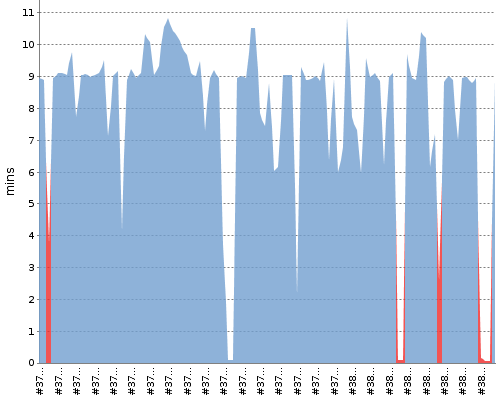

We observed that the average build time of a Jenkins job to build a Docker image was about 9 to 10 minutes.

Investigating what takes most time

We wipe the workspace folder of the Jenkins job after finishing each Jenkins build to avoid any unintentional behavior caused by the residue left from a previous build. The application's folder is about 500 MiB in size. Each Jenkins build spends about 20 seconds to perform a shallow Git clone of the latest commit of the specified git branch from our remote GitHub repository.

After cloning the latest source code, Jenkins executes docker build command to build a Docker image with a unique tag to containerize the cloned source code of the application.

Jenkins build spends another 10 seconds invoking docker build command and sending build context to Docker daemon.

01:05:43 [docker-builder] $ docker build --build-arg RAILS_ENV=production -t bigbinary/xyz:production-role-management-feature-1529436929 --pull=true --file=./Dockerfile /var/lib/jenkins/workspace/docker-builder
01:05:53 Sending build context to Docker daemon 489.4 MB

We use the same Docker image on a number of Kubernetes pods. Therefore, we do not want to execute bundle install and rake assets:precompile tasks while starting a container in each pod which would prevent that pod from accepting any requests until these tasks are finished.

The recommended approach is to run bundle install and rake assets:precompile tasks while or before containerizing the Rails application.

Following is a trimmed down version of our actual Dockerfile which is used by docker build command to containerize our application.

FROM bigbinary/xyz-base:latest

ENV APP_PATH /data/app/

WORKDIR $APP_PATH

ADD . $APP_PATH

ARG RAILS_ENV

RUN bin/bundle install --without development test

RUN bin/rake assets:precompile

CMD ["bin/bundle", "exec", "puma"]

The RUN instructions in the above Dockerfile executes bundle install and rake assets:precompile tasks while building a Docker image. Therefore, when a Kubernetes pod is created using such a Docker image, Kubernetes pulls the image, starts a Docker container using that image inside the pod and runs puma server immediately.

The base Docker image which we use in the FROM instruction contains necessary system packages. We rarely need to update any system package. Therefore, an intermediate layer which may have been built previously for that instruction is reused while executing the docker build command. If the layer for FROM instruction is reused, Docker reuses cached layers for the next two instructions such as ENV and WORKDIR respectively since both of them are never changed.

01:05:53 Step 1/8 : FROM bigbinary/xyz-base:latest
01:05:53 latest: Pulling from bigbinary/xyz-base
01:05:53 Digest: sha256:193951cad605d23e38a6016e07c5d4461b742eb2a89a69b614310ebc898796f0
01:05:53 Status: Image is up to date for bigbinary/xyz-base:latest
01:05:53  ---> c2ab738db405
01:05:53 Step 2/8 : ENV APP_PATH /data/app/
01:05:53  ---> Using cache
01:05:53  ---> 5733bc978f19
01:05:53 Step 3/8 : WORKDIR $APP_PATH
01:05:53  ---> Using cache
01:05:53  ---> 0e5fbc868af8

Docker checks contents of the files in the image and calculates checksum for each file for an ADD instruction. Since source code changes often, the previously cached layer for the ADD instruction is invalidated due to the mismatching checksums. Therefore, the 4th instruction ADD in our Dockerfile has to add the local files in the provided build context to the filesystem of the image being built in a separate intermediate container instead of reusing the previously cached instruction layer. On an average, this instruction spends about 25 seconds.

01:05:53 Step 4/8 : ADD . $APP_PATH
01:06:12  ---> cbb9a6ac297e
01:06:17 Removing intermediate container 99ca98218d99

We need to build Docker images for our application using different Rails environments. To achieve that, we trigger a parameterized Jenkins build by specifying the needed Rails environment parameter. This parameter is then passed to the docker build command using --build-arg RAILS_ENV=production option. The ARG instruction in the Dockerfile defines RAILS_ENV variable and is implicitly used as an environment variable by the rest of the instructions defined just after that ARG instruction. Even if the previous ADD instruction didn't invalidate build cache; if the ARG variable is different from a previous build, then a "cache miss" occurs and the build cache is invalidated for the subsequent instructions.

01:06:17 Step 5/8 : ARG RAILS_ENV
01:06:17  ---> Running in b793b8cc2fe7
01:06:22  ---> b8a70589e384
01:06:24 Removing intermediate container b793b8cc2fe7

The next two RUN instructions are used to install gems and precompile static assets using sprockets. As earlier instruction(s) already invalidates the build cache, these RUN instructions are mostly executed instead of reusing cached layer. The bundle install command takes about 2.5 minutes and the rake assets:precompile task takes about 4.35 minutes.

01:06:24 Step 6/8 : RUN bin/bundle install --without development test
01:06:24  ---> Running in a556c7ca842a
01:06:25 bin/bundle install --without development test
01:08:22  ---> 82ab04f1ff42
01:08:40 Removing intermediate container a556c7ca842a
01:08:58 Step 7/8 : RUN bin/rake assets:precompile
01:08:58  ---> Running in b345c73a22c
01:08:58 bin/bundle exec rake assets:precompile
01:09:07 ** Invoke assets:precompile (first_time)
01:09:07 ** Invoke assets:environment (first_time)
01:09:07 ** Execute assets:environment
01:09:07 ** Invoke environment (first_time)
01:09:07 ** Execute environment
01:09:12 ** Execute assets:precompile
01:13:20  ---> 57bf04f3c111
01:13:23 Removing intermediate container b345c73a22c

Above both RUN instructions clearly looks like the main culprit which were slowing down the whole docker build command and thus the Jenkins build.

The final instruction CMD which starts the puma server takes another 10 seconds. After building the Docker image, the docker push command spends another minute.

01:13:23 Step 8/8 : CMD ["bin/bundle", "exec", "puma"]
01:13:23  ---> Running in 104967ad1553
01:13:31  ---> 35d2259cdb1d
01:13:34 Removing intermediate container 104967ad1553
01:13:34 Successfully built 35d2259cdb1d
01:13:35 [docker-builder] $ docker inspect 35d2259cdb1d
01:13:35 [docker-builder] $ docker push bigbinary/xyz:production-role-management-feature-1529436929
01:13:35 The push refers to a repository [docker.io/bigbinary/xyz]
01:14:21 d67854546d53: Pushed
01:14:22 production-role-management-feature-1529436929: digest: sha256:07f86cfd58fac412a38908d7a7b7d0773c6a2980092df416502d7a5c051910b3 size: 4106
01:14:22 Finished: SUCCESS

So, we found the exact commands which were causing the docker build command to take so much time to build a Docker image.

Let's summarize the steps involved in building our Docker image and the average time each needed to finish.

Often, people build Docker images from a single Git branch, like master. Since changes in a single branch are incremental and hardly has differences in the Gemfile.lock file across commits, bundler cache need not be managed explicitly. Instead, Docker automatically reuses the previously built layer for the RUN bundle install instruction if the Gemfile.lock file remains unchanged.

In our case, this does not happen. For every new feature or a bug fix, we create a separate Git branch. To verify the changes on a particular branch, we deploy a separate review app which serves the code from that branch. To achieve this workflow, everyday we need to build a lot of Docker images containing source code from varying Git branches as well as with varying environments. Most of the times, the Gemfile.lock and assets have different versions across these Git branches. Therefore, it is hard for Docker to cache layers for bundle install and rake assets:precompile tasks and reuse those layers during every docker build command run with different application source code and a different environment. This is why the previously built Docker layer for the RUN bin/bundle install instruction and the RUN bin/rake assets:precompile instruction was often not being used in our case. This reason was causing the RUN instructions to be executed without reusing the previously built Docker layer cache while performing every other Docker build.

Before discussing the approaches to speed up our Docker build flow, let's familiarize with the bundle install and rake assets:precompile tasks and how to speed up them by reusing cache.

Speeding up "bundle install" by using cache

By default, Bundler installs gems at the location which is set by Rubygems. Also, Bundler looks up for the installed gems at the same location.

This location can be explicitly changed by using --path option.

If Gemfile.lock does not exist or no gem is found at the explicitly provided location or at the default gem path then bundle install command fetches all remote sources, resolves dependencies if needed and installs required gems as per Gemfile.

The bundle install --path=vendor/cache command would install the gems at the vendor/cache location in the current directory. If the same command is run without making any change in Gemfile, since the gems were already installed and cached in vendor/cache, the command will finish instantly because Bundler need not to fetch any new gems.

The tree structure of vendor/cache directory looks like this.

vendor/cache
├── aasm-4.12.3.gem
├── actioncable-5.1.4.gem
├── activerecord-5.1.4.gem
├── [...]
├── ruby
│   └── 2.4.0
│       ├── bin
│       │   ├── aws.rb
│       │   ├── dotenv
│       │   ├── erubis
│       │   ├── [...]
│       ├── build_info
│       │   └── nokogiri-1.8.1.info
│       ├── bundler
│       │   └── gems
│       │       ├── activeadmin-043ba0c93408
│       │       [...]
│       ├── cache
│       │   ├── aasm-4.12.3.gem
│       │   ├── actioncable-5.1.4.gem
│       │   ├── [...]
│       │   ├── bundler
│       │   │   └── git
│       └── specifications
│           ├── aasm-4.12.3.gemspec
│           ├── actioncable-5.1.4.gemspec
│           ├── activerecord-5.1.4.gemspec
│           ├── [...]
│           [...]
[...]

It appears that Bundler keeps two separate copies of the .gem files at two different locations, vendor/cache and vendor/cache/ruby/VERSION_HERE/cache.

Therefore, even if we remove a gem in the Gemfile, then that gem will be removed only from the vendor/cache directory. The vendor/cache/ruby/VERSION_HERE/cache will still have the cached .gem file for that removed gem.

Let's see an example.

We have 'aws-sdk', '2.11.88' gem in our Gemfile and that gem is installed.

$ ls vendor/cache/aws-sdk-*
vendor/cache/aws-sdk-2.11.88.gem
vendor/cache/aws-sdk-core-2.11.88.gem
vendor/cache/aws-sdk-resources-2.11.88.gem

$ ls vendor/cache/ruby/2.4.0/cache/aws-sdk-*
vendor/cache/ruby/2.4.0/cache/aws-sdk-2.11.88.gem
vendor/cache/ruby/2.4.0/cache/aws-sdk-core-2.11.88.gem
vendor/cache/ruby/2.4.0/cache/aws-sdk-resources-2.11.88.gem

Now, we will remove the aws-sdk gem from Gemfile and run bundle install.

$ bundle install --path=vendor/cache
Using rake 12.3.0
Using aasm 4.12.3
[...]
Updating files in vendor/cache
Removing outdated .gem files from vendor/cache
  * aws-sdk-2.11.88.gem
  * jmespath-1.3.1.gem
  * aws-sdk-resources-2.11.88.gem
  * aws-sdk-core-2.11.88.gem
  * aws-sigv4-1.0.2.gem
Bundled gems are installed into `./vendor/cache`

$ ls vendor/cache/aws-sdk-*
no matches found: vendor/cache/aws-sdk-*

$ ls vendor/cache/ruby/2.4.0/cache/aws-sdk-*
vendor/cache/ruby/2.4.0/cache/aws-sdk-2.11.88.gem
vendor/cache/ruby/2.4.0/cache/aws-sdk-core-2.11.88.gem
vendor/cache/ruby/2.4.0/cache/aws-sdk-resources-2.11.88.gem

We can see that the cached version of gem(s) remained unaffected.

If we add the same gem 'aws-sdk', '2.11.88' back to the Gemfile and perform bundle install, instead of fetching that gem from remote Gem repository, Bundler will install that gem from the cache.

$ bundle install --path=vendor/cache
Resolving dependencies........
[...]
Using aws-sdk 2.11.88
[...]
Updating files in vendor/cache
  * aws-sigv4-1.0.3.gem
  * jmespath-1.4.0.gem
  * aws-sdk-core-2.11.88.gem
  * aws-sdk-resources-2.11.88.gem
  * aws-sdk-2.11.88.gem

$ ls vendor/cache/aws-sdk-*
vendor/cache/aws-sdk-2.11.88.gem
vendor/cache/aws-sdk-core-2.11.88.gem
vendor/cache/aws-sdk-resources-2.11.88.gem

What we understand from this is that if we can reuse the explicitly provided vendor/cache directory every time we need to execute bundle install command, then the command will be much faster because Bundler will use gems from local cache instead of fetching from the Internet.

Speeding up "rake assets:precompile" task by using cache

JavaScript code written in TypeScript, Elm, JSX etc cannot be directly served to the browser. Almost all web browsers understands JavaScript (ES4), CSS and image files. Therefore, we need to transpile, compile or convert the source asset into the formats which browsers can understand. In Rails, Sprockets is the most widely used library for managing and compiling assets.

In development environment, Sprockets compiles assets on-the-fly as and when needed using Sprockets::Server. In production environment, recommended approach is to pre-compile assets in a directory on disk and serve it using a web server like Nginx.

Precompilation is a multi-step process for converting a source asset file into a static and optimized form using components such as processors, transformers, compressors, directives, environments, a manifest and pipelines with the help of various gems such as sass-rails, execjs, etc. The assets need to be precompiled in production so that Sprockets need not resolve inter-dependencies between required source dependencies every time a static asset is requested. To understand how Sprockets work in great detail, please read this guide.

When we compile source assets using rake assets:precompile task, we can find the compiled assets in public/assets directory inside our Rails application.

$ ls public/assets
manifest-15adda275d6505e4010b95819cf61eb3.json
icons-6250335393ad03df1c67eafe138ab488.eot
icons-6250335393ad03df1c67eafe138ab488.eot.gz
cons-b341bf083c32f9e244d0dea28a763a63.svg
cons-b341bf083c32f9e244d0dea28a763a63.svg.gz
application-8988c56131fcecaf914b22f54359bf20.js
application-8988c56131fcecaf914b22f54359bf20.js.gz
xlsx.full.min-feaaf61b9d67aea9f122309f4e78d5a5.js
xlsx.full.min-feaaf61b9d67aea9f122309f4e78d5a5.js.gz
application-adc697aed7731c864bafaa3319a075b1.css
application-adc697aed7731c864bafaa3319a075b1.css.gz
FontAwesome-42b44fdc9088cae450b47f15fc34c801.otf
FontAwesome-42b44fdc9088cae450b47f15fc34c801.otf.gz
[...]

We can see that the each source asset has been compiled and minified along with its gunzipped version.

Note that the assets have a unique and random digest or fingerprint in their file names. A digest is a hash calculated by Sprockets from the contents of an asset file. If the contents of an asset is changed, then that asset's digest also changes. The digest is mainly used for busting cache so a new version of the same asset can be generated if the source file is modified or the configured cache period is expired.

The rake assets:precompile task also generates a manifest file along with the precompiled assets. This manifest is used by Sprockets to perform fast lookups without having to actually compile our assets code.

An example manifest file, in our case public/assets/manifest-15adda275d6505e4010b95819cf61eb3.json looks like this.

{
  "files": {
    "application-8988c56131fcecaf914b22f54359bf20.js": {
      "logical_path": "application.js",
      "mtime": "2018-07-06T07:32:27+00:00",
      "size": 3797752,
      "digest": "8988c56131fcecaf914b22f54359bf20"
    },
    "xlsx.full.min-feaaf61b9d67aea9f122309f4e78d5a5.js": {
      "logical_path": "xlsx.full.min.js",
      "mtime": "2018-07-05T22:06:17+00:00",
      "size": 883635,
      "digest": "feaaf61b9d67aea9f122309f4e78d5a5"
    },
    "application-adc697aed7731c864bafaa3319a075b1.css": {
      "logical_path": "application.css",
      "mtime": "2018-07-06T07:33:12+00:00",
      "size": 242611,
      "digest": "adc697aed7731c864bafaa3319a075b1"
    },
    "FontAwesome-42b44fdc9088cae450b47f15fc34c801.otf": {
      "logical_path": "FontAwesome.otf",
      "mtime": "2018-06-20T06:51:49+00:00",
      "size": 134808,
      "digest": "42b44fdc9088cae450b47f15fc34c801"
    },
    [...]
  },
  "assets": {
    "icons.eot": "icons-6250335393ad03df1c67eafe138ab488.eot",
    "icons.svg": "icons-b341bf083c32f9e244d0dea28a763a63.svg",
    "application.js": "application-8988c56131fcecaf914b22f54359bf20.js",
    "xlsx.full.min.js": "xlsx.full.min-feaaf61b9d67aea9f122309f4e78d5a5.js",
    "application.css": "application-adc697aed7731c864bafaa3319a075b1.css",
    "FontAwesome.otf": "FontAwesome-42b44fdc9088cae450b47f15fc34c801.otf",
    [...]
  }
}

Using this manifest file, Sprockets can quickly find a fingerprinted file name using that file's logical file name and vice versa.

Also, Sprockets generates cache in binary format at tmp/cache/assets in the Rails application's folder for the specified Rails environment. Following is an example tree structure of the tmp/cache/assets directory automatically generated after executing RAILS_ENV=environment_here rake assets:precompile command for each Rails environment.

$ cd tmp/cache/assets && tree
.
├── demo
│   ├── sass
│   │   ├── 7de35a15a8ab2f7e131a9a9b42f922a69327805d
│   │   │   ├── application.css.sassc
│   │   │   └── bootstrap.css.sassc
│   │   ├── [...]
│   └── sprockets
│       ├── 002a592d665d92efe998c44adc041bd3
│       ├── 7dd8829031d3067dcf26ffc05abd2bd5
│       └── [...]
├── production
│   ├── sass
│   │   ├── 80d56752e13dda1267c19f4685546798718ad433
│   │   │   ├── application.css.sassc
│   │   │   └── bootstrap.css.sassc
│   │   ├── [...]
│   └── sprockets
│       ├── 143f5a036c623fa60d73a44d8e5b31e7
│       ├── 31ae46e77932002ed3879baa6e195507
│       └── [...]
└── staging
    ├── sass
    │   ├── 2101b41985597d41f1e52b280a62cd0786f2ee51
    │   │   ├── application.css.sassc
    │   │   └── bootstrap.css.sassc
    │   ├── [...]
    └── sprockets
        ├── 2c154d4604d873c6b7a95db6a7d5787a
        ├── 3ae685d6f922c0e3acea4bbfde7e7466
        └── [...]

Let's inspect the contents of an example cached file. Since the cached file is in binary form, we can forcefully see the non-visible control characters as well as the binary content in text form using cat -v command.

$ cat -v tmp/cache/assets/staging/sprockets/2c154d4604d873c6b7a95db6a7d5787a

^D^H{^QI"
class^F:^FETI"^SProcessedAsset^F;^@FI"^Qlogical_path^F;^@TI"^]components/Comparator.js^F;^@TI"^Mpathname^F;^@TI"T$root/app/assets/javascripts/components/Comparator.jsx^F;^@FI"^Qcontent_type^F;^@TI"^[application/javascript^F;^@TI"
mtime^F;^@Tl+^GM-gM-z;[I"^Klength^F;^@Ti^BM-L^BI"^Kdigest^F;^@TI"%18138d01fe4c61bbbfeac6d856648ec9^F;^@FI"^Ksource^F;^@TI"^BM-L^Bvar Comparator = function (props) {
  var comparatorOptions = [React.createElement("option", { key: "?", value: "?" })];
  var allComparators = props.metaData.comparators;
  var fieldDataType = props.fieldDataType;
  var allowedComparators = allComparators[fieldDataType] || allComparators.integer;
  return React.createElement(
    "select",
    {
      id: "comparator-" + props.id,
      disabled: props.disabled,
      onChange: props.handleComparatorChange,
      value: props.comparatorValue },
    comparatorOptions.concat(allowedComparators.map(function (comparator, id) {
      return React.createElement(
        "option",
        { key: id, value: comparator },
        comparator
      );
    }))
  );
};^F;^@TI"^Vdependency_digest^F;^@TI"%d6c86298311aa7996dd6b5389f45949f^F;^@FI"^Srequired_paths^F;^@T[^FI"T$root/app/assets/javascripts/components/Comparator.jsx^F;^@FI"^Udependency_paths^F;^@T[^F{^HI"   path^F;^@TI"T$root/app/assets/javascripts/components/Comparator.jsx^F;^@F@^NI"^^2018-07-03T22:38:31+00:00^F;^@T@^QI"%51ab9ceec309501fc13051c173b0324f^F;^@FI"^M_version^F;^@TI"%30fd133466109a42c8cede9d119c3992^F;^@F

We can see that there are some weird looking characters in the above file because it is not a regular file to be read by humans. Also, it seems to be holding some important information such as mime-type, original source code's path, compiled source, digest, paths and digests of required dependencies, etc. Above compiled cache appears to be of the original source file located at app/assets/javascripts/components/Comparator.jsx having actual contents in JSX and ES6 syntax as shown below.

const Comparator = props => {
  const comparatorOptions = [<option key="?" value="?" />];
  const allComparators = props.metaData.comparators;
  const fieldDataType = props.fieldDataType;
  const allowedComparators =
    allComparators[fieldDataType] || allComparators.integer;
  return (
    <select
      id={`comparator-${props.id}`}
      disabled={props.disabled}
      onChange={props.handleComparatorChange}
      value={props.comparatorValue}
    >
      {comparatorOptions.concat(
        allowedComparators.map((comparator, id) => (
          <option key={id} value={comparator}>
            {comparator}
          </option>
        ))
      )}
    </select>
  );
};

If similar cache exists for a Rails environment under tmp/cache/assets and if no source asset file is modified then re-running the rake assets:precompile task for the same environment will finish quickly. This is because Sprockets will reuse the cache and therefore will need not to resolve the inter-assets dependencies, perform conversion, etc.

Even if certain source assets are modified, Sprockets will rebuild the cache and re-generate compiled and fingerprinted assets just for the modified source assets.

Therefore, now we can understand that that if we can reuse the directories tmp/cache/assets and public/assets every time we need to execute rake assets:precompile task, then the Sprockets will perform precompilation much faster.

Speeding up "docker build" -- first attempt

As discussed above, we were now familiar about how to speed up the bundle install and rake assets:precompile commands individually.

We decided to use this knowledge to speed up our slow docker build command. Our initial thought was to mount a directory on the host Jenkins machine into the filesystem of the image being built by the docker build command. This mounted directory then can be used as a cache directory to persist the cache files of both bundle install and rake assets:precompile commands run as part of docker build command in each Jenkins build. Then every new build could reuse the previous build's cache and therefore could finish faster.

Unfortunately, this wasn't possible due to no support from Docker yet. Unlike the docker run command, we cannot mount a host directory into docker build command. A feature request for providing a shared host machine directory path option to the docker build command is still open here.

To reuse cache and perform faster, we need to carry the cache files of both bundle install and rake assets:precompile commands between each docker build (therefore, Jenkins build). We were looking for some place which can be treated as a shared cache location and can be accessed during each build.

We decided to use Amazon's S3 service to solve this problem.

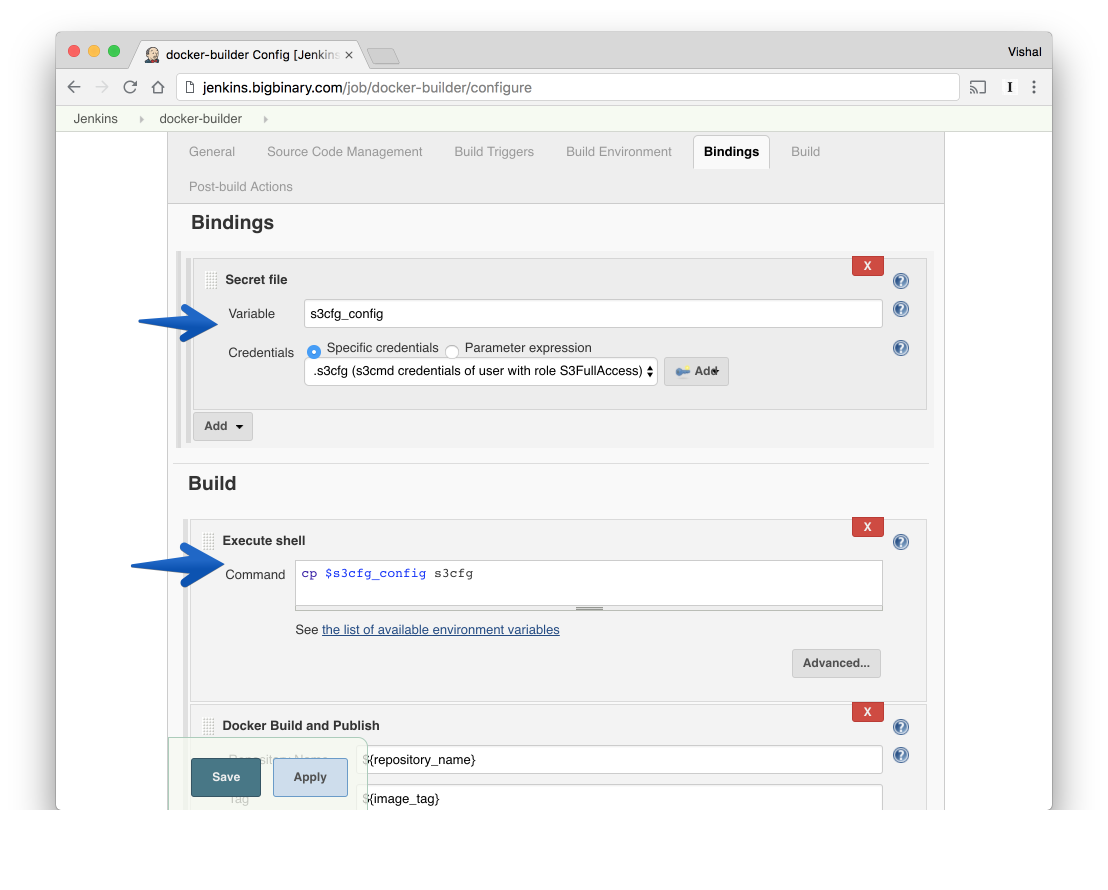

To upload and download files from S3, we needed to inject credentials for S3 into the build context provided to the docker build command.

Alternatively, these S3 credentials can be provided to the docker build command using --build-arg option as discussed earlier.

We used s3cmd command-line utility to interact with the S3 service.

Following shell script named as install_gems_and_precompile_assets.sh was configured to be executed using a RUN instruction while running the docker build command.

set -ex

# Step 1.
if [ -e s3cfg ]; then mv s3cfg ~/.s3cfg; fi

bundler_cache_path="vendor/cache"
assets_cache_path="tmp/assets/cache"
precompiled_assets_path="public/assets"
cache_archive_name="cache.tar.gz"
s3_bucket_path="s3://docker-builder-bundler-and-assets-cache"
s3_cache_archive_path="$s3_bucket_path/$cache_archive_name"

# Step 2.
# Fetch tarball archive containing cache and extract it.
# The "tar" command extracts the archive into "vendor/cache",
# "tmp/assets/cache" and "public/assets".
if s3cmd get $s3_cache_archive_path; then
  tar -xzf $cache_archive_name && rm -f $cache_archive_name
fi

# Step 3.
# Install gems from "vendor/cache" and pack up them.
bin/bundle install --without development test --path $bundler_cache_path
bin/bundle pack --quiet

# Step 4.
# Precompile assets.
# Note that the "RAILS_ENV" is already defined in Dockerfile
# and will be used implicitly.
bin/rake assets:precompile

# Step 5.
# Compress "vendor/cache", "tmp/assets/cache"
# and "public/assets" directories into a tarball archive.
tar -zcf $cache_archive_name $bundler_cache_path \
                             $assets_cache_path  \
                             $precompiled_assets_path

# Step 6.
# Push the compressed archive containing updated cache to S3.
s3cmd put $cache_archive_name $s3_cache_archive_path || true

# Step 7.
rm -f $cache_archive_name ~/.s3cfg

Let's discuss the various steps annotated in the above script.

1. The S3 credentials file injected by Jenkins into the build context needs to be placed at ~/.s3cfg location, so we move that credentials file accordingly.
2. Try to fetch the compressed tarball archive comprising directories such as vendor/cache, tmp/assets/cache and public/assets. If exists, extract the tarball archive at respective paths and remove that tarball.
3. Execute the bundle install command which would reuse the extracted cache from vendor/cache.
4. Execute the rake assets:precompile command which would reuse the extracted cache from tmp/assets/cache and public/assets.
5. Compress the cache directories vendor/cache, tmp/assets/cache and public/assets in a tarball archive.
6. Upload the compressed tarball archive containing updated cache directories to S3.
7. Remove the compressed tarball archive and the S3 credentials file.

Please note that, in our actual case we had generated different tarball archives depending upon the provided RAILS_ENV environment. For demonstration, here we use just a single archive instead.

The Dockerfile needed to update to execute the install_gems_and_precompile_assets.sh script.

FROM bigbinary/xyz-base:latest

ENV APP_PATH /data/app/

WORKDIR $APP_PATH

ADD . $APP_PATH

ARG RAILS_ENV

RUN install_gems_and_precompile_assets.sh

CMD ["bin/bundle", "exec", "puma"]

With this setup, average time of the Jenkins builds was now reduced to about 5 minutes. This was a great achievement for us.

We reviewed this approach in a great detail. We found that although the approach was working fine, there was a major security flaw. It is not at all recommended to inject confidential information such as login credentials, private keys, etc. as part of the build context or using build arguments while building a Docker image using docker build command. And we were actually injecting S3 credentials into the Docker image. Such confidential credentials provided while building a Docker image can be inspected using docker history command by anyone who has access to that Docker image.

Due to above reason, we needed to abandon this approach and look for another.

Speeding up "docker build" -- second attempt

In our second attempt, we decided to execute bundle install and rake assets:precompile commands outside the docker build command. Outside meaning the place to execute these commands was Jenkins build itself. So with the new approach, we had to first execute bundle install and rake assets:precompile commands as part of the Jenkins build and then execute docker build as usual. With this approach, we could now avail the inter-build caching benefits provided by Jenkins.

The prerequisite was to have all the necessary system packages installed on the Jenkins machine required by the gems enlisted in the application's Gemfile. We installed all the necessary system packages on our Jenkins server.

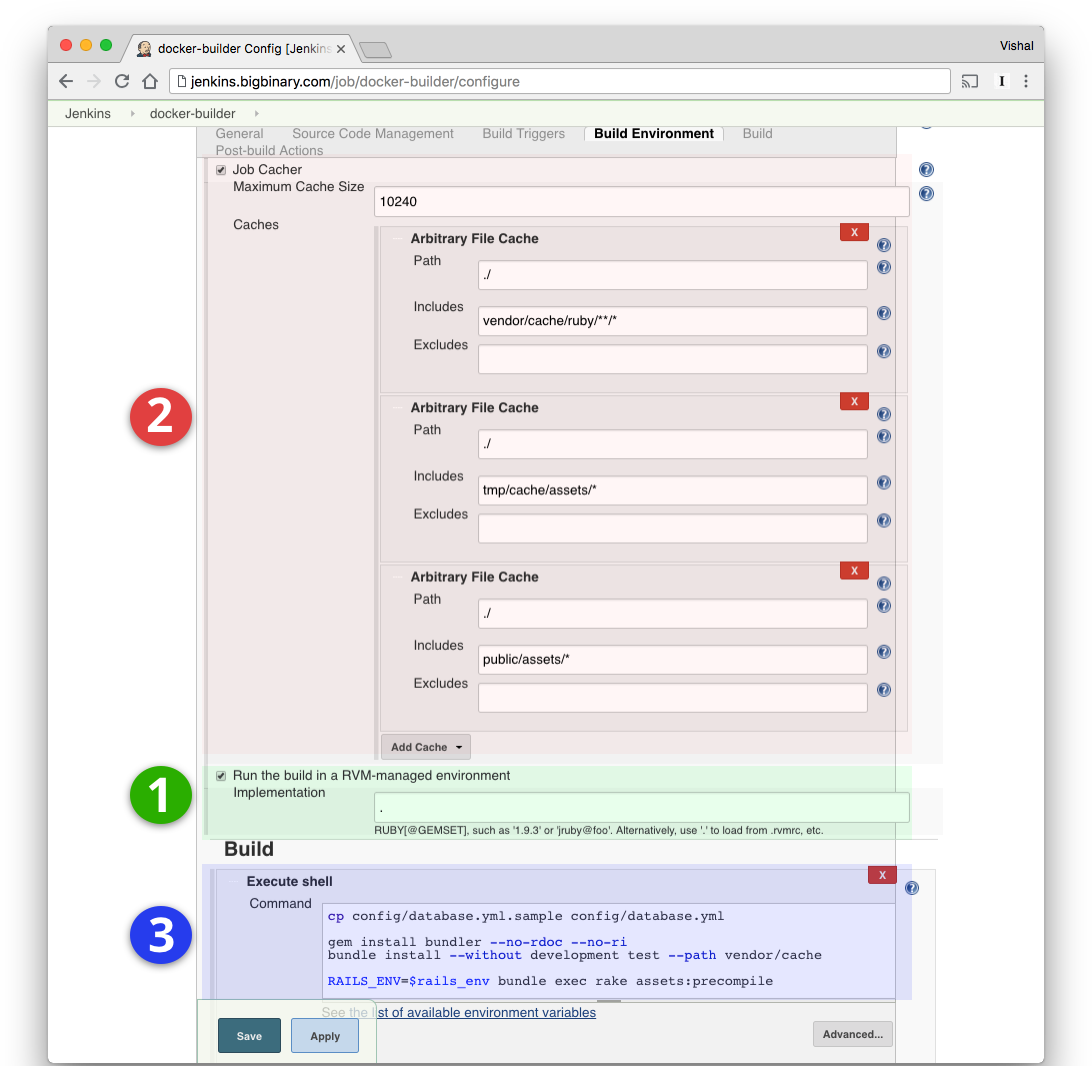

Following screenshot highlights the things that we needed to configure in our Jenkins job to make this approach work.

1. Running the Jenkins build in RVM managed environment with the specified Ruby version

Sometimes, we need to use different Ruby version as specified in the .ruby-version in the cloned source code of the application. By default, the bundle install command would install the gems for the system Ruby version available on the Jenkins machine. This was not acceptable for us. Therefore, we needed a way to execute the bundle install command in Jenkins build in an isolated environment which could use the Ruby version specified in the .ruby-version file instead of the default system Ruby version. To address this, we used RVM plugin for Jenkins. The RVM plugin enabled us to run the Jenkins build in an isolated environment by using or installing the Ruby version specified in the .ruby-version file. The section highlighted with green color in the above screenshot shows the configuration required to enable this plugin.

2. Carrying cache files between Jenkins builds required to speed up "bundle install" and "rake assets:precompile" commands

We used Job Cacher Jenkins plugin to persist and carry the cache directories such as vendor/cache, tmp/cache/assets and public/assets between builds. At the beginning of a Jenkins build just after cloning the source code of the application, the Job Cacher plugin restores the previously cached version of these directories into the current build. Similarly, before finishing a Jenkins build, the Job Cacher plugin copies the current version of these directories at /var/lib/jenkins/jobs/docker-builder/cache on the Jenkins machine which is outside the workspace directory of the Jenkins job. The section highlighted with red color in the above screenshot shows the necessary configuration required to enable this plugin.

3. Executing the "bundle install" and "rake assets:precompile" commands before "docker build" command

Using the "Execute shell" build step provided by Jenkins, we execute bundle install and rake assets:precompile commands just before the docker build command invoked by the CloudBees Docker Build and Publish plugin. Since the Job Cacher plugin already restores the version of vendor/cache, tmp/cache/assets and public/assets directories from the previous build into the current build, the bundle install and rake assets:precompile commands reuses the cache and performs faster.

The updated Dockerfile has lesser number of instructions now.

FROM bigbinary/xyz-base:latest

ENV APP_PATH /data/app/

WORKDIR $APP_PATH

ADD . $APP_PATH

CMD ["bin/bundle", "exec", "puma"]

With this approach, average Jenkins build time is now between 3.5 to 4.5 minutes.

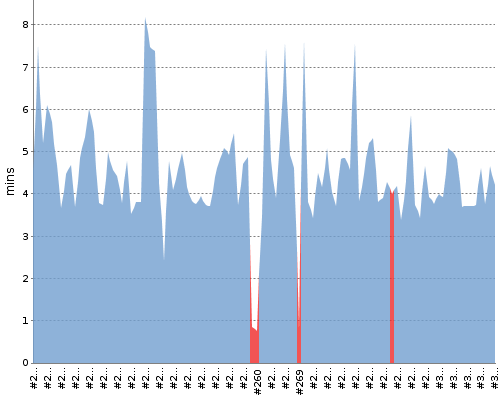

Following graph shows the build time trend of some of the recent builds on our Jenkins server.

Please note that the spikes in the above graphs shows that certain Jenkins builds took more than 5 minutes sometimes due to concurrently running builds at that time. Because our Jenkins server has a limited set of resources, concurrently running builds often run longer than estimated.

We are still looking to improve the containerization speed even more and still maintaining the image size small. Please let us know if there's anything else we can do to improve the containerization process.

Note that that our Jenkins server runs on the Ubuntu OS which is based on Debian. Our base Docker image is also based on Debian. Some of the gems in our Gemfile are native extensions written in C. The pre-installed gems on Jenkins machine have been working without any issues while running inside the Docker containers on Kubernetes. It may not work if both of the platforms are different since native extension gems installed on Jenkins host may fail to work inside the Docker container.
